Radiology - Stifle positioning

As you can imagine, we are sent a huge number of radiographs of stifles to evaluate. Some good, some not so good!

Radiographs are the most valuable and straightforward imaging tool to evaluate the stifle. To diagnose likely cruciate disease radiographically, we are looking for evidence of effusion and osteoarthritis in the form of peri-articular new bone. We may also be able to see evidence of medial fibrosis “medial buttress”. It is also important to rule out other less common causes of stifle problems, like a bone tumour.

Figure 1. Stifle effusion. Purple arrows: stifle effusion. Yellow arrows: Peri-articular new bone/osteophyte

In order to get the most information from stifle radiographs, it’s important that the views are well positioned.

The medio-lateral view should be positioned so that the femoral condyles are superimposed, and the body wall is clear of the whole of the stifle joint. This can be difficult in obese dogs and sometimes the creative use of a rope tie may be required. If the stifle is not straight on the medio-lateral view, it can be impossible for us to look for an effusion.

Figure 2. Rotated medio-lateral view, difficult to interpret

Our preferred position for a medio-lateral view is shown in the following pictures, and we recommend you try out this way of positioning if you are having difficulty getting straight medio-lateral views. Sometimes the position requires minor adjustment with a small foam pad under either the hock or the hip.

Figure 3A. Medio-lateral positioning
Figure 3B. Medio-lateral positioning

We also use the medio-lateral view to measure the “tibial plateau angle” which is important in planning a TPLO. In order to measure this angle we need the hock to be included in the radiograph, as the tibial long axis is defined as a line from the centre of the talus to the intercondylar eminence on the tibial plateau. The radiograph should be centred on the stifle, and the beam collimated out to include the hock.

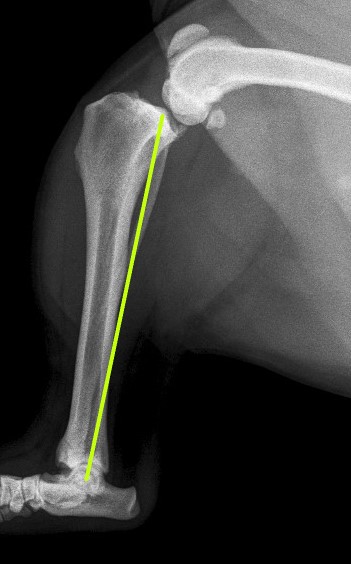

Figure 4A. Tibial Axis

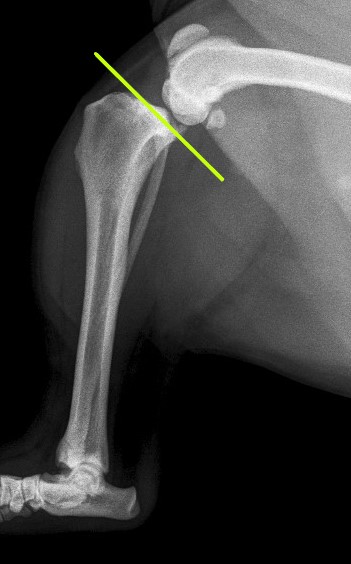

Figure 4B. Tibial plateau angle

The caudo-cranial view is best obtained in sternal recumbency. In this position, you can use the position of the paw, and palpation of the patella/tibial tuberosity to achieve a straight view. A good caudo-cranial will have the patella centrally overlying the femur and the fabellae bisected by the femoral cortices. You may need to keep the tail out of the way with a sandbag or tie.

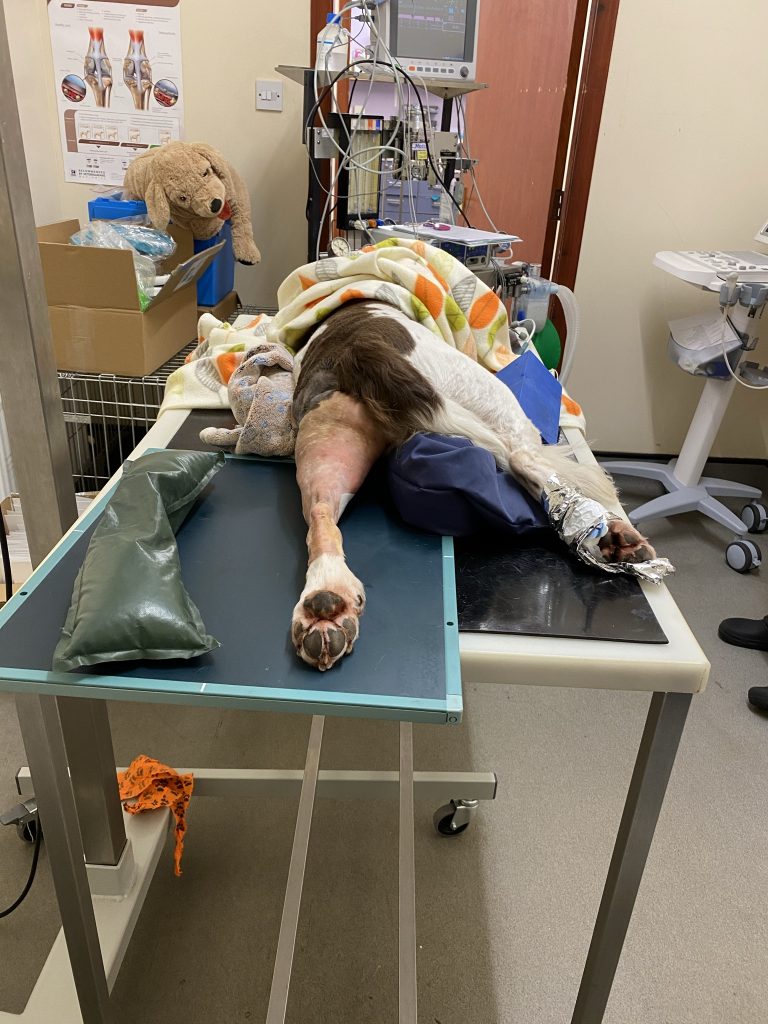

Figure 5A. Caudo-cranial positioning
Figure 5B. Caudo-cranial positioning

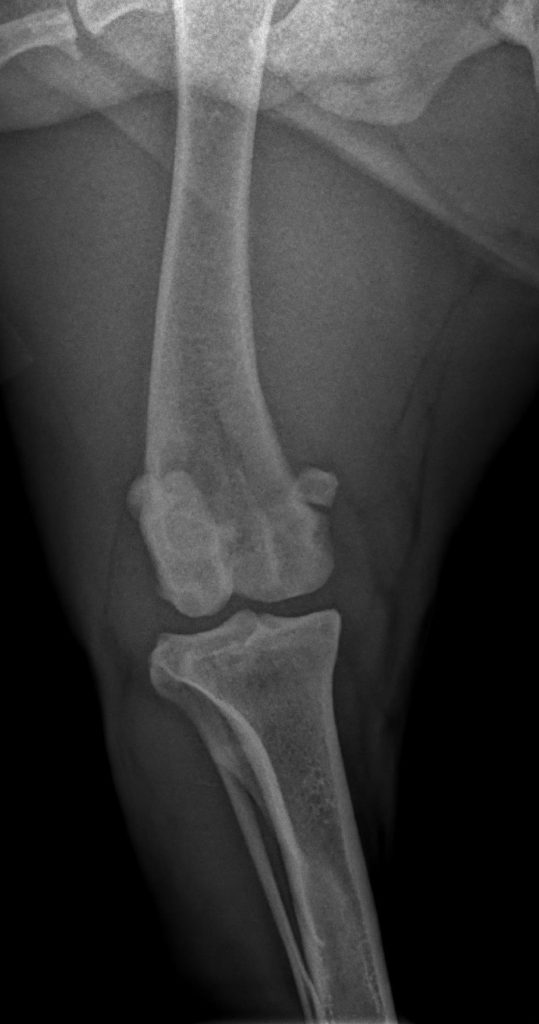

Figure 5C. Rotated caudo-cranial view
Figure 5D. Straight caudo-cranial view view

Good quality radiographs help us to make a confident diagnosis and avoid the need for repeating radiographs on the day of surgery, keeping the anaesthetic as short as possible.
